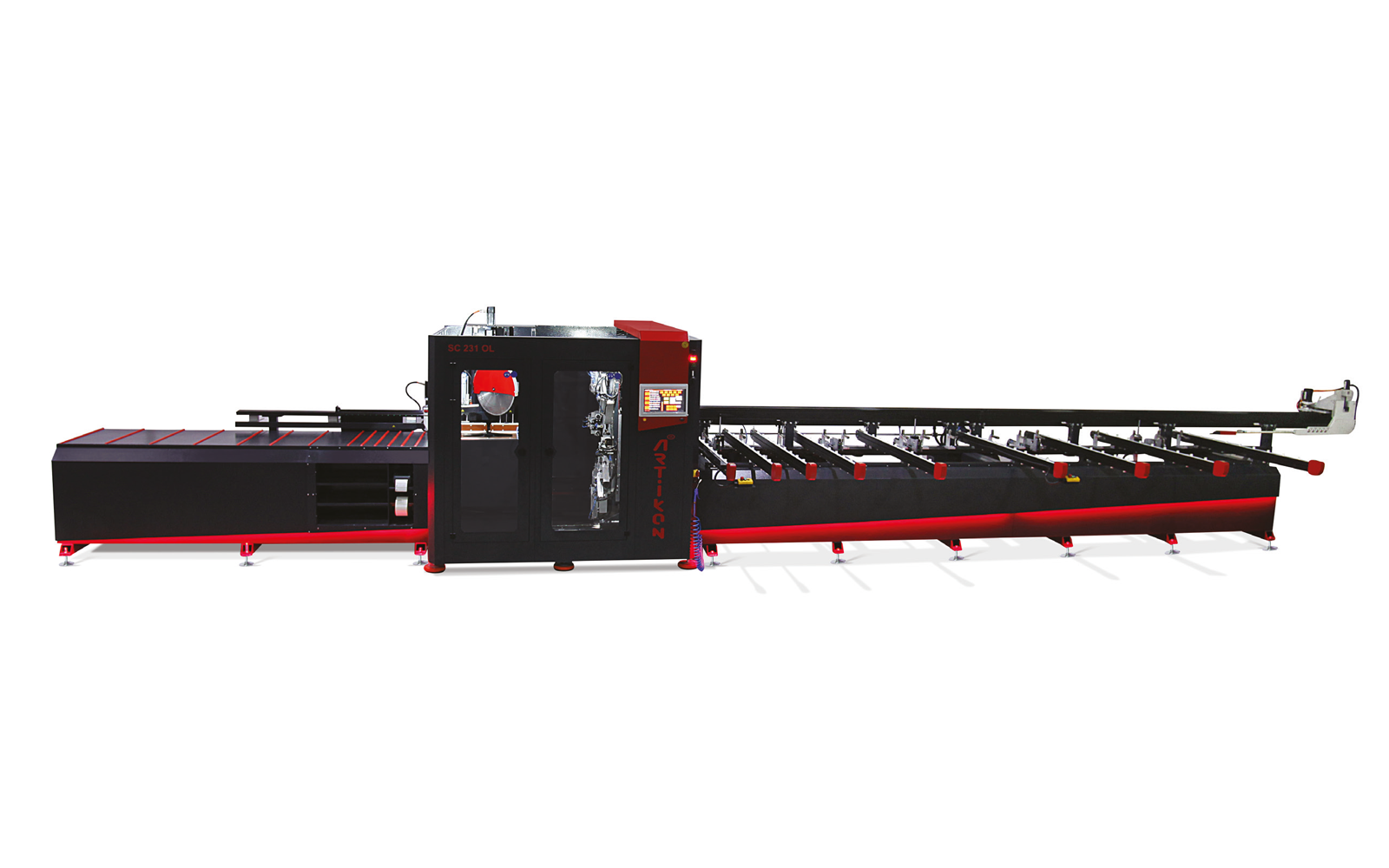

SC/231 OL PVC PROFİL İŞLEME VE KESİM MERKEZİ
Genel Bilgiler
ÖZELLİKLER
Tüm doğrama ve optimizasyon programları ile uyumlu çalışır

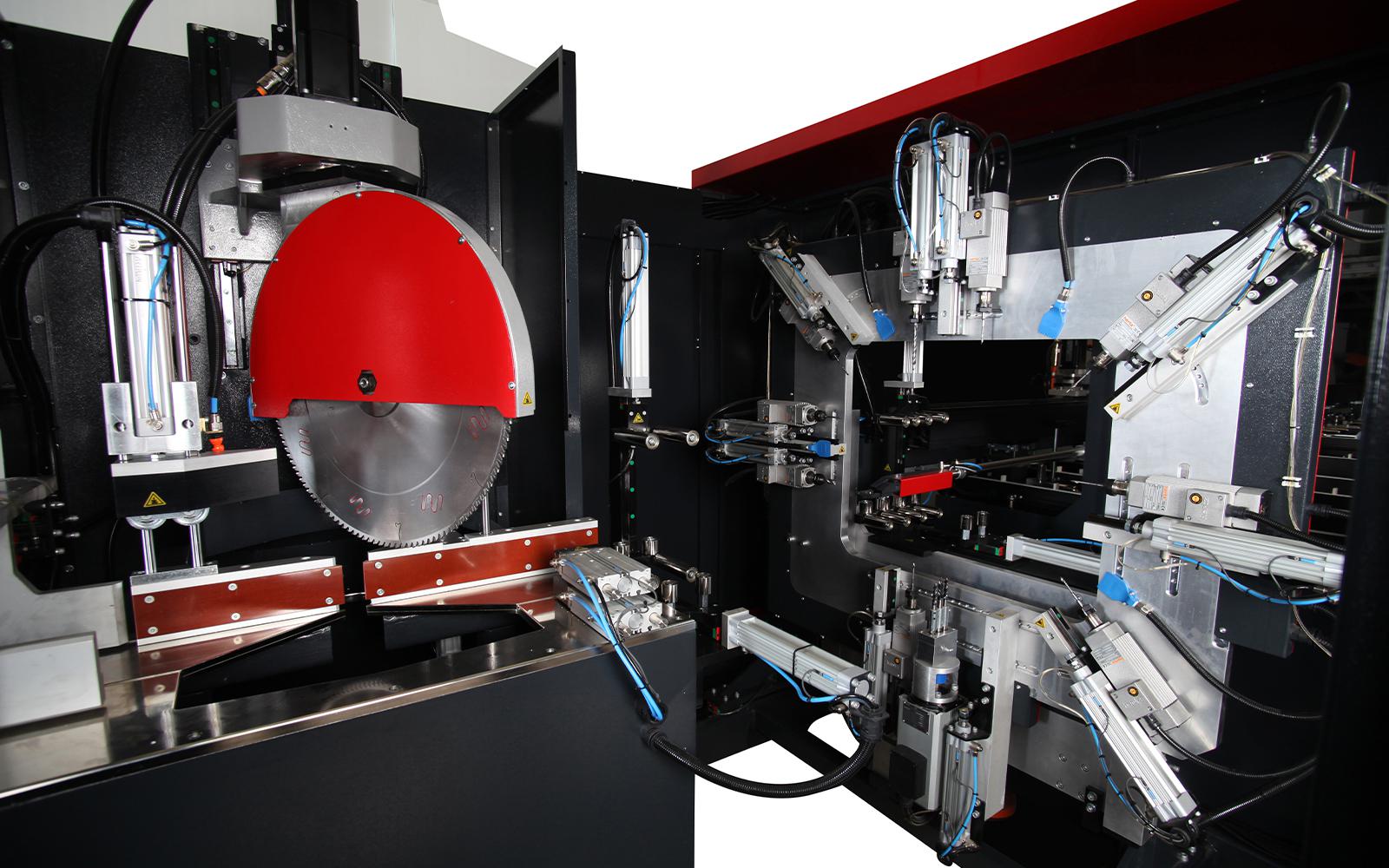

Profil üzerindeki dört yüzeyde kanal delme, markalama, barel ve kol yeri gibi işlemlerin tümünü istenilen parametrelere bağlı kalarak yapılmasına olanak tanıyan 3 akslı servo motor kontrollü CNC işleme ünitesi bulunur.
Freze ünitesi kapı kol yeri ve barel yuvası işlemini tek işlemde açarak minimum işleme süresi sağlar
Üçlü kolyeri delme işleminin tek seferde açarak minimum işleme süresi sağlar
Kapı kilit ve ispanyolet kanal açma işlemini tek seferde açarak minimum işleme süresi sağlar
Kesim işlemiyle aynı anda senkronize olarak freze istasyonunda eş zamanlı freze işlemleri gerçekleştirilerek yüksek kapasite imkanı

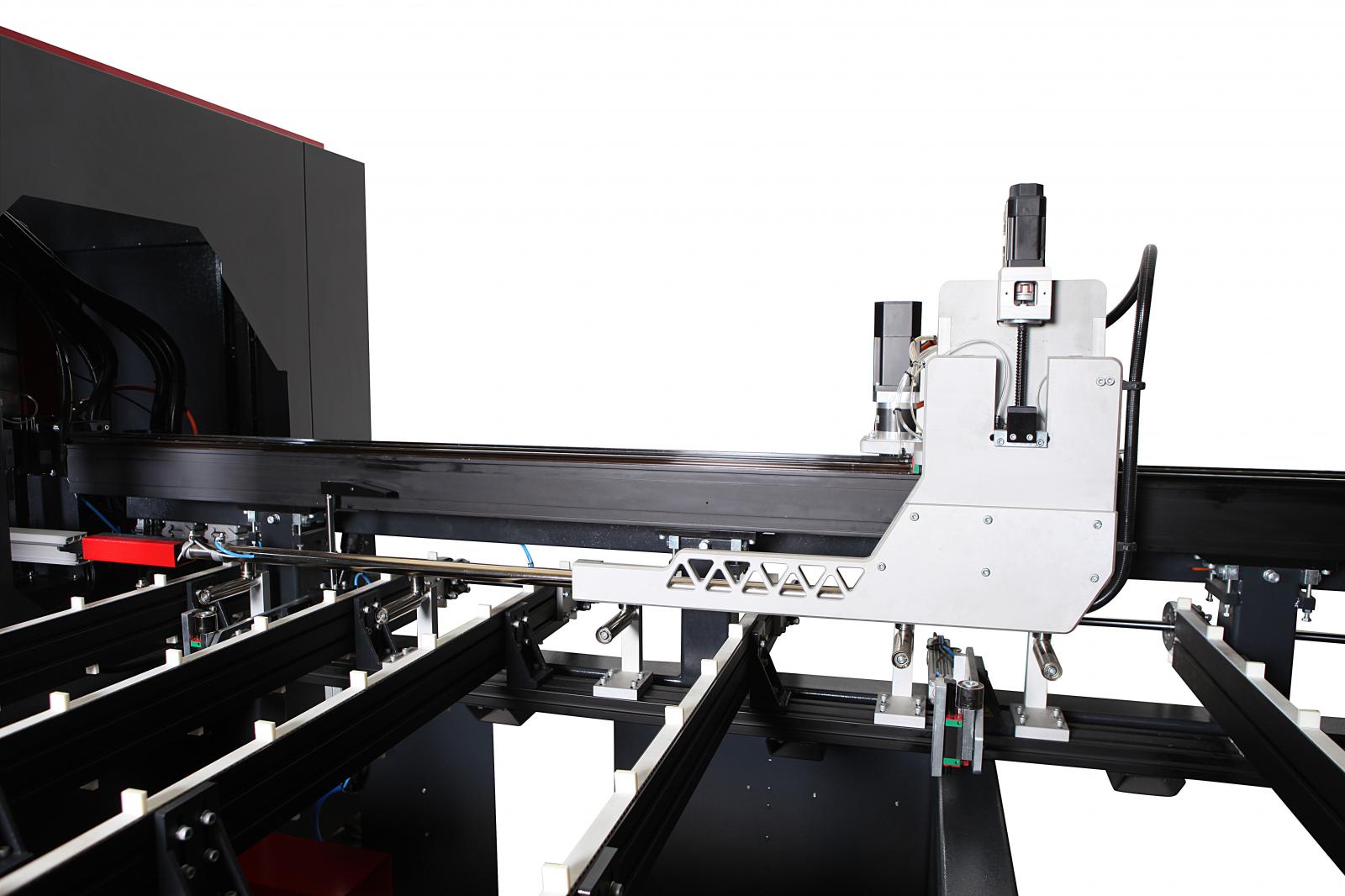

Robot kol tutucu ile profil yükleme istasyonu bağımsız hareket ederek profil yükleme kayıpları minimum indirilmiştir
Tutucu kol 3 eksende hareket imkanına sahiptir
Otomatik profil yakalama özelliği
Otomatik profil uzunluğu algılama özelliği

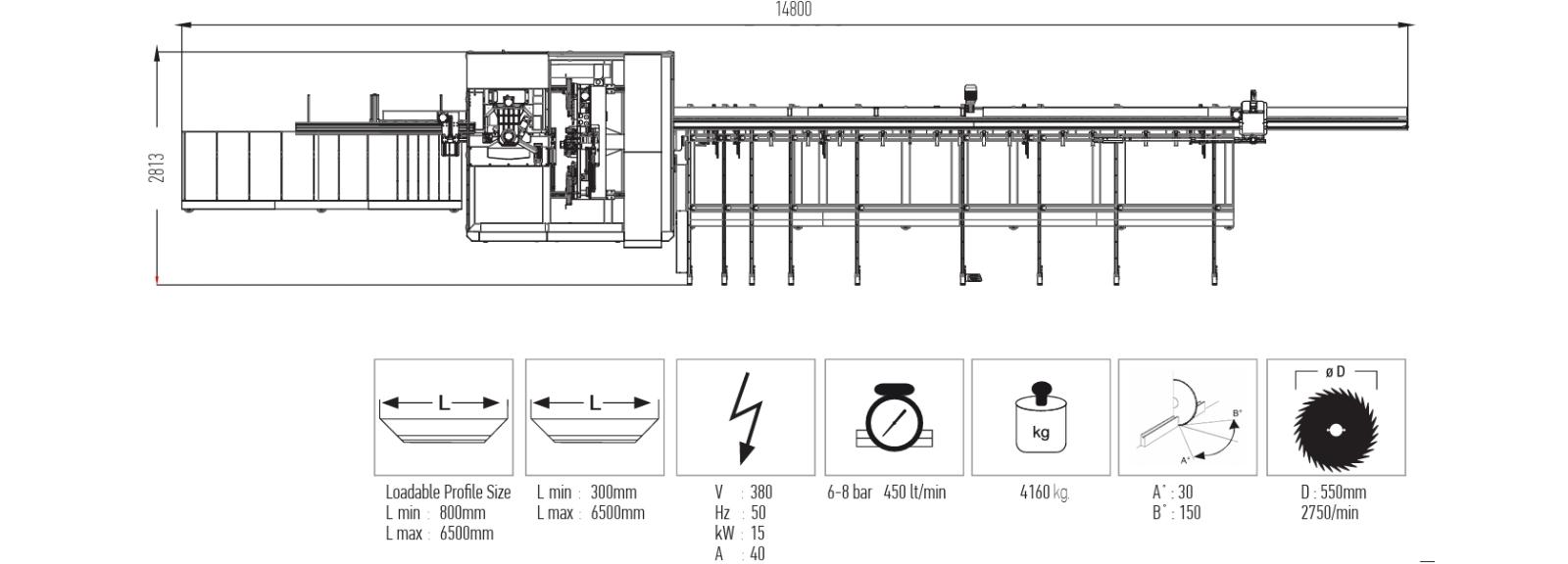

Profil besleme ünitesine 500 mm – 6500 mm aralığında istenilen boyda profil yüklenebilir
Uzaktan bağlantı desteği
15.6” Dokunmatik yüksek performanslı endüstriyel PC (Perfection in Automation Made in Austria B&R)
10 adet yüksek hızlı özel hava soğutması spindle

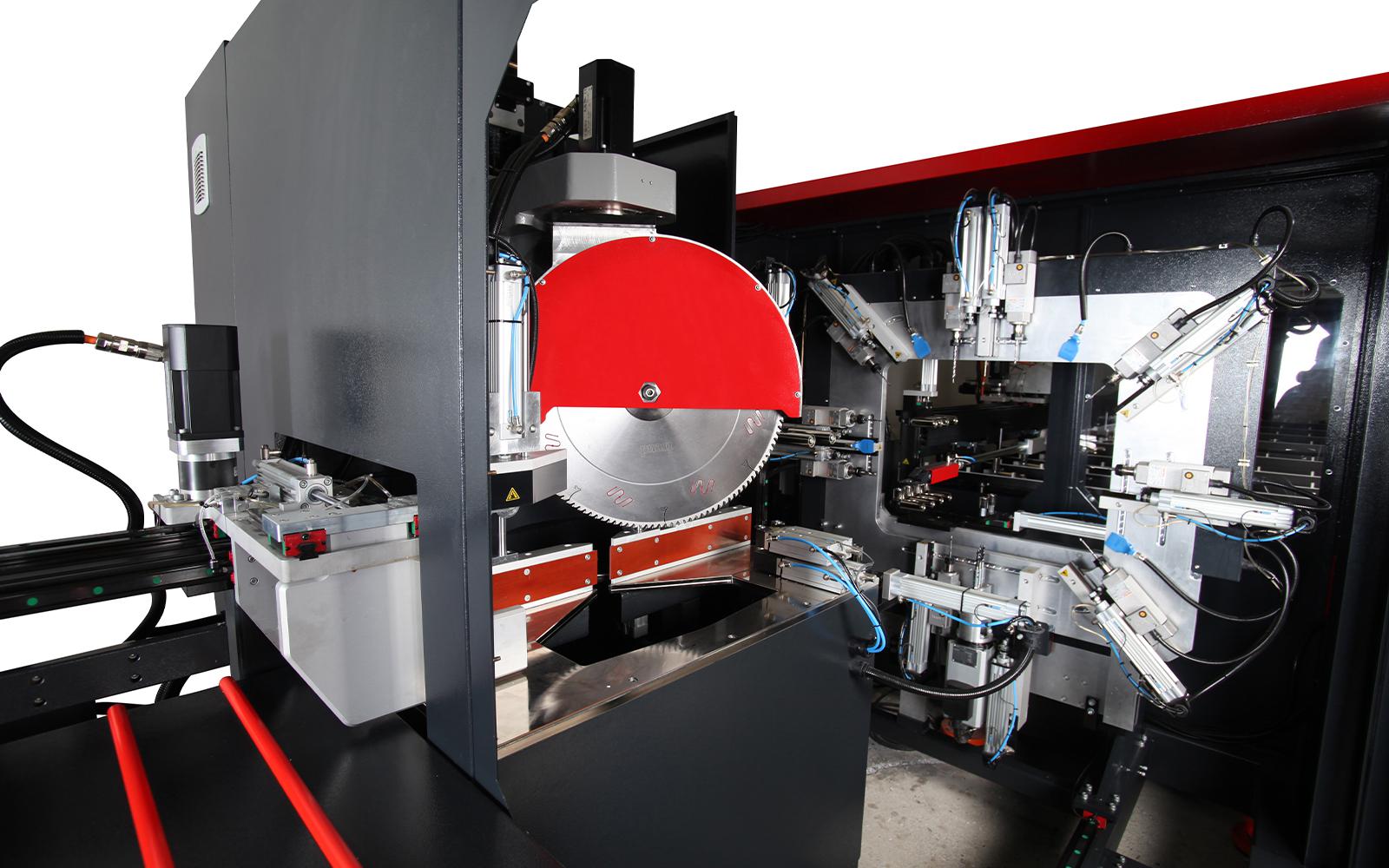

30ᵒ-150ᵒ arası, 0.1ᵒ hassas kesim imkanı sağlayan servo kontrollü kesim ünitesi
Kesilen atık profillerin otomatik konveyör sistemiyle toplama arabasına taşınması.
FEATURES
Compatible with all type of PVC profiles and optimization programms.
Center has a 3-axis servo motor controlled CNC processing unit that allows all operations such as grooving, drilling, marking, berrel and handle hole opening on four surfaces on the profile to be performed by adhering to the desired parametres.
The milling unit opens the door handle and cylinder holes in one operation, providing minimum machining time.
Triple handle hole drilling process made in one move, provides minimal processing time.
High capacity possibility by performing cutting process and milling operations working at same time synchronously.
It provides minimum processing time by grooving the door lock and espagnolette chanel in one operation.
Profile loading losses are minimized by moving independently of robot arm holder and profile loading station.
The holding arm has the possibility of movement in 3 axes. Automatic profile capturing system.
Automatic profile length detection feature.
Profile feeding unit can be loaded with profiles of desired length in the range of 500 mm - 6500 mm.
Remote connection support.
15,6' high performance industrial Touchscreen PC ("Perfection in Automation Made in Austria B&R")
10 high-speed special air-cooled spindles.
Servo controlled cutting unit providing 0.1⁰ precision cutting between 30⁰-150⁰.
Transportation of cut waste profiles to the collection car with the automatic conveyor system.
Servo motor system for quick discharge after profile cutting.
Saw up and down servo control system for fast cutting.
